The PPRo8 Liquidity Scanner window allow user to send a list of orders and cancel them immediately afterwards to search for liquidity on a given symbol. To open Liquidity Scanner click on the Liquidity Scanner icon on the toolbar, as highlighted in red below.

Liquidity Scanner window will look like the following image:

• Run/Pause/Stop the Liquidity Scanner script: user can use these icons to run and stop selected liquidity scanner script
• Add/Remove scanner script: user can add (click “+” icon) or remove (click “-“ icon) in Liquidity Scanner window

Right-clicking on a given script will prompt a menu, select “Customization”, trader will be able to setup the script, as shown in the image below, the customization window has two tabs: Settings/Colors:

User can configure the following:

Symbol list: user can select from existing symbol lists created in Symbol List Editor tool Order characteristics, including:

• Region: user should select the region where the market is located
• Market: once the region is selected, user should select the market
• Order List: user can select up to 3 existing order lists as setup in Order List tool

Conditions:

• Shares: the number of shares for each order list
• Display: user can select the length of time when the order is in display before it’s cancelled
• Pause on: user can select the condition under which the order list will be paused

User can click “Apply” button at the bottom of the window to save the settings.

To save the scanner created and reuse them the next time, make sure all the scanners are stopped, then click the “Save Layout” button in the PPro8 toolbar.

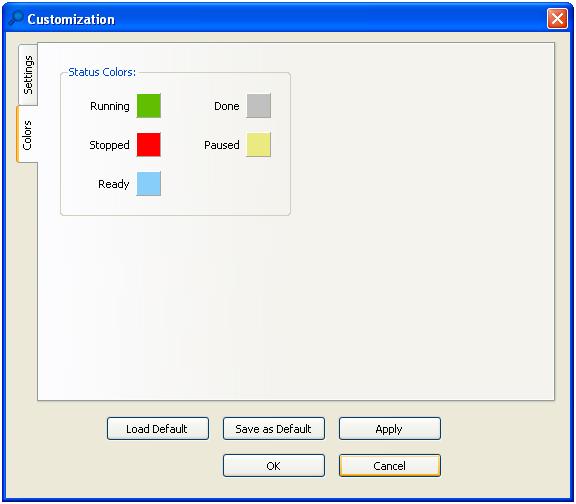

User can setup the color to be displayed as the script condition in the main window. Trader can click “Apply” button at the bottom of the window to save the settings.
