The PPRo8 Quote Board window allows trader to watch multiple symbols’ level 1 quotes in a summary table. To open the Quote Board click on the Quote Board icon on the toolbar, as highlighted in red below.

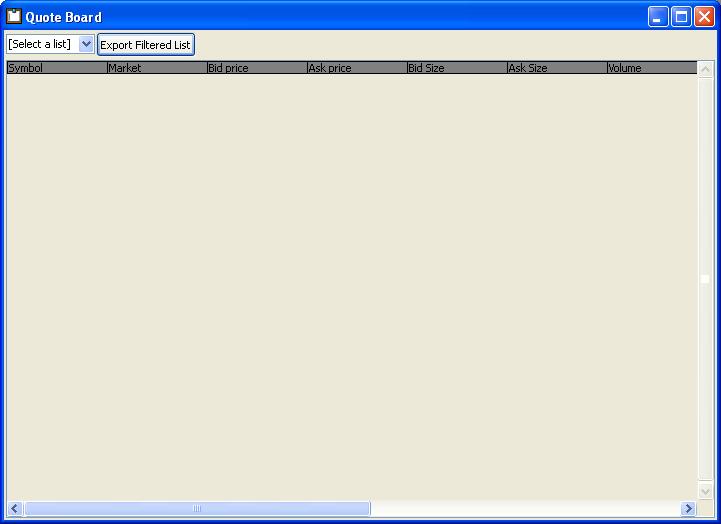

Quote Board window will look like the following image:

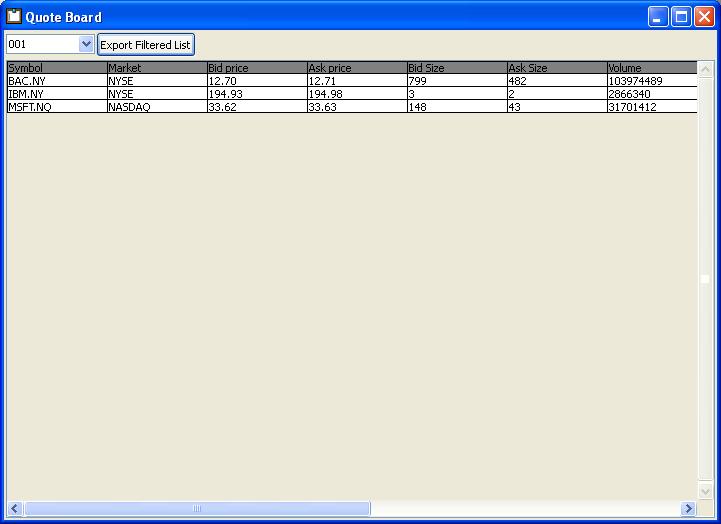

User should select an existing symbol list as created in Symbol List Editor tool from the “Select a List” dropdown list. The quotes are displayed in local currency.

Clicking the “Export Filtered List” will export the Quote Board info into a .csv file which can be then imported to Excel for further analysis.

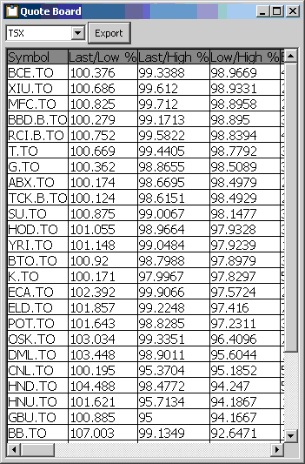

Quote Board uses a multiplier to display Volume (K for 1000, M for 1000000). All other columns with numbers contain up to 6 digits:

Right-clicking the white space next to “Export Filter List” button will open the customization window. As shown in the image below, the customization window has two tabs: Display/Color:

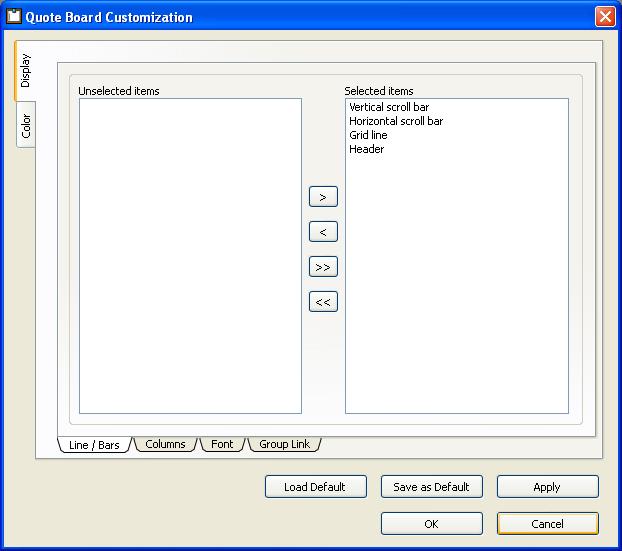

User can select, unselect, and re-arrange the order of the lines and bars in the main window

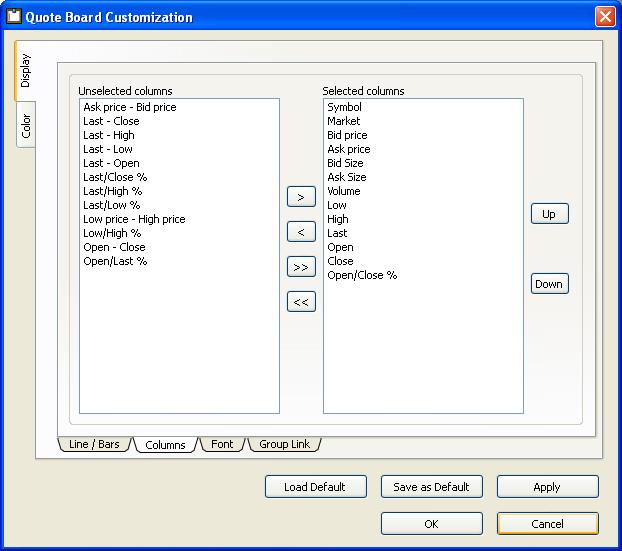

User can select, unselect, and re-arrange the order of the column information as displayed in the main window

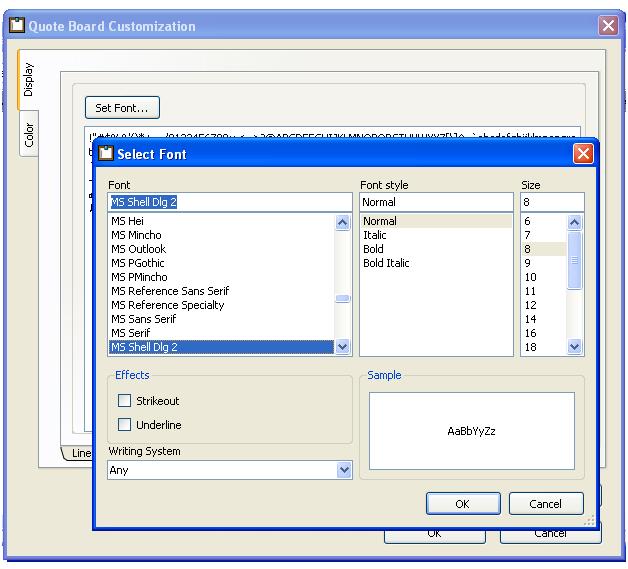

User can modify the display font by clicking “Set Font…” icon on the top.

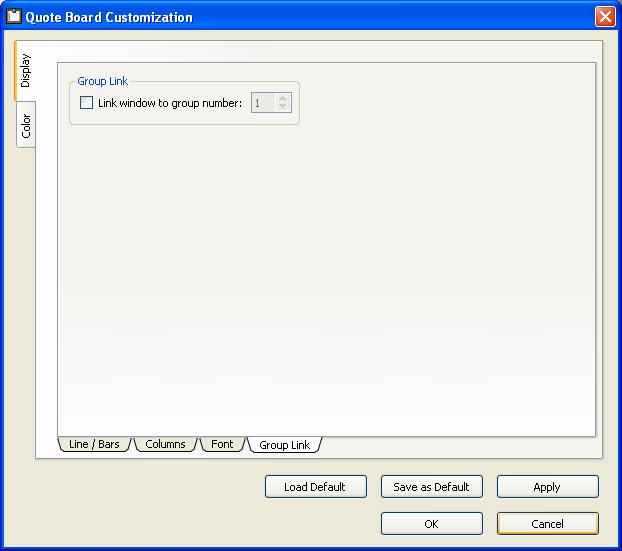

When checked, the Quote Board window will be linked to other tools such as Stock Window, TOS Window, etc. When clicking on one symbol in the Quote Board window, the symbol in all windows in the same numbered window group will change together.

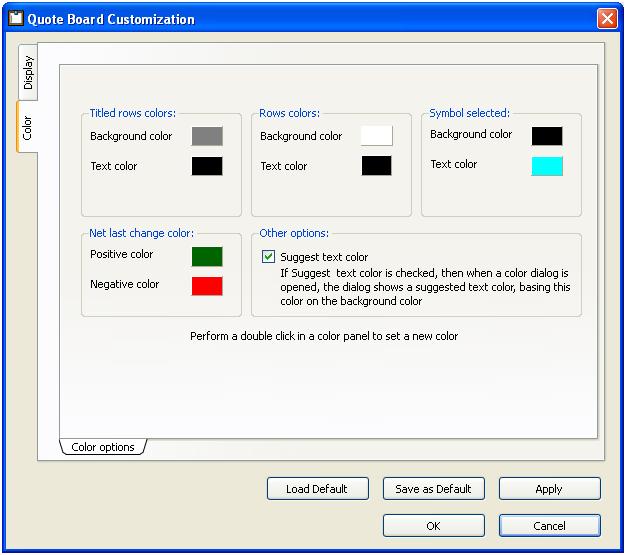

User can setup the color of the following items in this tab:

• Titled rows colors
• Rows color
• Symbol selected
• Net last change color

User can click “Apply” icon at the bottom of the window to save the settings.
